Fix Toro 51586 Power Sweep Blower 7-AMP Motor New Carbon Brush Set 7A
Bring your Toro back to life!
Replacing brushes and cleaning commutator early can prevent damage to motor armature.
Product Application
- The electric motor brush can be used as a replacement for many power tools with 8mm brush see (Dimensions below)
- To use; remove old brush, Cut copper wire close to old brush, 'Tin' wire lead end and solder, Seat Brushes as shown, Clean armature as needed to shinny bright copper, re-assemble, and run blower to seat brushes.
- This brush is compatible with
7 Amp leaf blowers Toro® model 51586 Toro® 7 amp blower.
STOP Note: (Take your blower apart and determine the correct one for your blower type (7A, 7B, 7C, 7D, or 7E)
then purchase correct (BRUSH SIZE below) (7A, 7B, 7C or 7D To Search size
https://www.dracoproducts.net/search?q=Toro-7
|
Attention: Toro UPC 021038515861 with 7-amp blowers has 2-Product Name and Model number Variations with 4-Brush sizes: (Select the correct one for your blower type) |
||
|
Draco # |
Toro Product Name |
Brush Size (Approx.) |
|
Toro-7B |
51585 Power Sweep 7 amp 2-Speed Electric Blower |
6 x 10mm |
|
Toro-7A |
Toro 51586 Power Sweep Blower |
5 x 11mm |
|
Toro-7C |
Toro 51586 Power Sweep Blower 1-Speed |
6.2 x 6.2mm |
|
Toro-7D |
Toro 51586 Power Sweep Blower 1-Speed |
6 x 11.5mm |
|
© 2016 – 2021 Draco Products. All Rights Reserved |
||
- Replacement carbon brushes are NOT AVAILABLE from Toro®
- Fix it yourself, eliminating waste, and unnecessary expense.
☛ · Buy two sets now with discounted shipping, the right size brush is hard to find and you'll have them for next time
Description
- Carbon motor brushes
- Most commonly replaced power tool components
- Replacing brushes early can prevent damage to motor armature
- Often the cause of a poorly running motor
- Replacing brushes can fix an intermittent motor

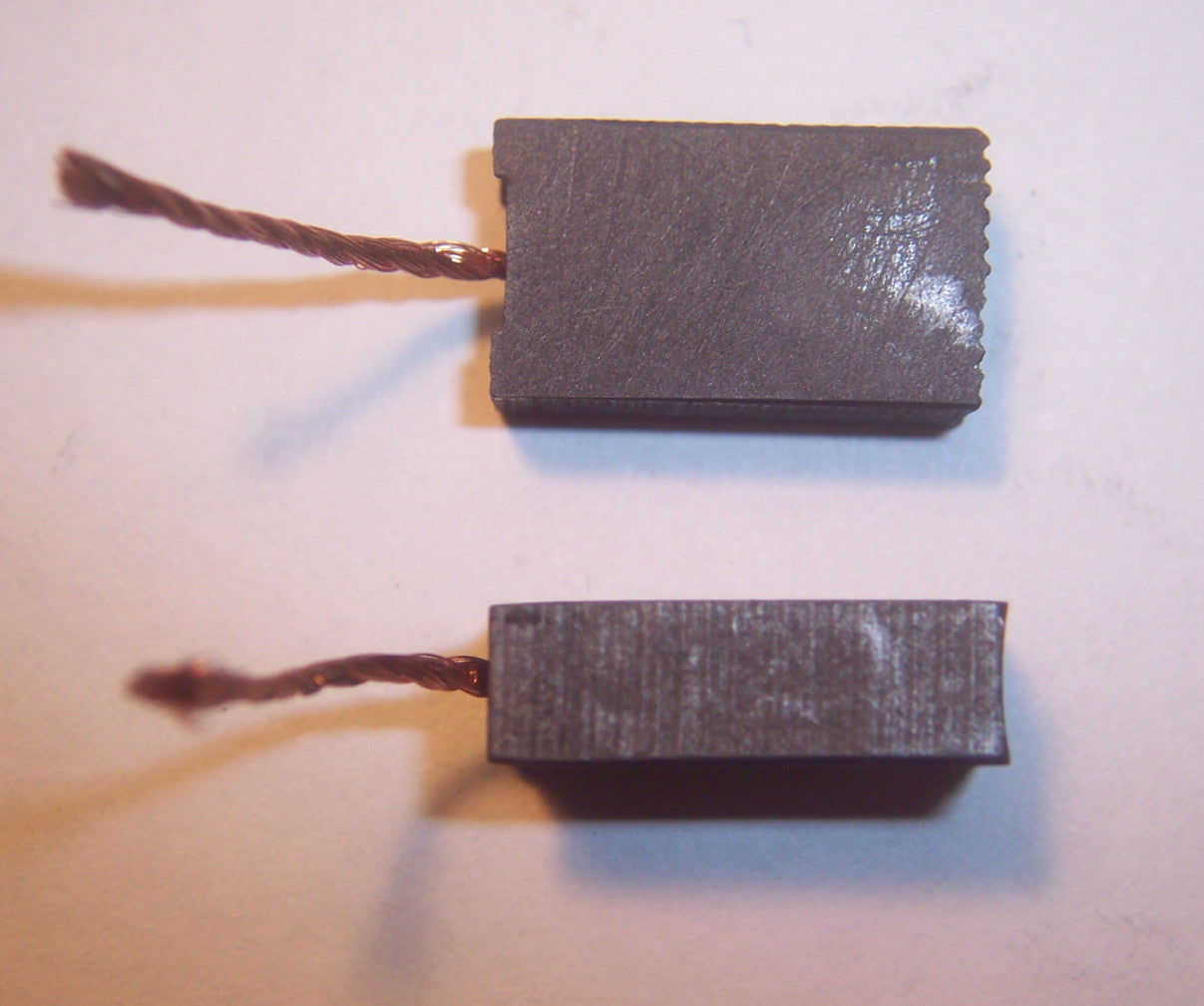

Product Specification
- Product Name : Carbon Brush
- Fitness of use : Generic Electric Motor
- Carbon Brush Size (Approx): 4.8 x 10.9 x 16.4mm (L*W*H)
- Copper Wire Length (Approx) : 23mm
- Material : Carbon Graphite
- Tinned : Solder
- Color : As Picture Shown
- Net Weight : 2g (each)
- Package Content : 2 x Carbon Brush
Specification:
|
Product Name |
Motor Carbon |
|
Fitness |
Generic Electric Motor |
|
Carbon Brush Size (Approx) |
4.9 x 10.9 x 16.4mm (*L*W*H) |
|
Copper Wire Length(Approx) |
23mm (When Straight) |
|
Material |
Carbon Graphite |
|
Weight |
2g (each) |
|
Package Content |
2 x Motor Carbon Brush |
 |
|
|
1) Warning! - Remove Power, turn-off, and disconnect power before changing brushes. |
|
|
|
|
|
2) Warning! - For safety always follow manufactures safety and operational instructions. |
